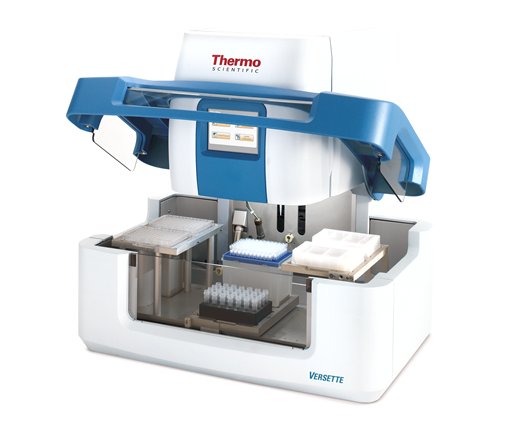

液體自動處理平臺
產品詳情
適用于19種 可相互更換、有射頻標記的移液頭，Versette™提供杰出的多功能移液性能，可滿足需要從單通道至384通道進行自動移液的各種應用的需求。Versette移液工作平臺可配置使用一次性吸頭和固定式吸頭的移液頭，移液體積范圍從0.1 µl至1250 µl。為進一步優化性能，單通道、8通道及12通道移液頭使用可實現安全密封的Thermo Scientific ClipTips吸頭。這種吸頭獨特的卡入式設計，在插入及彈出時只需要最小的機械力，從而降低儀器和分液頭的損耗，延長使用壽命。96及384通道的移液頭使用Thermo Scientific D.A.R.T.s吸頭，采用表面密封技術來保證所有通道的精準移液。
Versette 提供兩種操作臺配置以提高可擴展性。可方便更換的兩板位及六板位操作臺為儀器的獨立使用和自動化整合提供了極大的靈活性。由于具有緊湊的外觀尺寸，加之空間節約型雙層式設計的六板位操作臺，Versette可以安置于任何工作臺面及封閉工作空間。并且， 所有操作臺均可裝配安全擋板，可為實驗材料提供封閉式空間、減少污染，而無需額外的空間分隔設施。
無論是簡單還是復雜的移液程序，既可通過直觀的隨機LCD觸摸屏使用內置軟件，又可通過計算機使用專門的Thermo Scientific ControlMate軟件進行編程。Thermo Scientific Versette自動液體處理平臺具備先進的儀器操控性、實驗精確性和全功能性，是從手持移液向自動移液過渡，或建立整合的自動移液系統的理想選擇。
Space Matters
Versatile enough to fit any lab from low to high throughput. Scalable to fit a lab's needs today and tomorrow. Easy to integrate into any size lab.
- Compatible with nineteen interchangeable pipetting heads ranging from single to 384-channels
- Pipetting heads are available in disposable and fixed tip formats
- Total volume range of 0.1µL to 1250
- All pipetting heads include RFID tags to self-identify for tracking usage and service information
Consumables Designed to Optimize Liquid Handling Performance
- Single-, 8-, 12-channel pipetting tools utilize Thermo Scientific ClipTips* that securely seal to the pipetting head
- These require low insertion and ejection force, extending the instrument components' life
- 96- and 384-channel pipetting heads utilize Thermo Scientific D.A.R.T.s* tips
- D.A.R.T.s utilize a unique surface seal design that ensures accurate and precise pipetting by forming an even seal across all pipetting channels
Options for 2- or 6- Position Deck
- Two stage capacity options, whether transitioning from handheld pipetting procedures or incorporating into an integrated system
- Both can be swapped out with minimal effort and used in standalone or robotic-friendly format
- Compact design allows it to fit on standard laboratory benches and into most biological hoods
- 2- and 6- position units are equipped with a safety shield
- The six position stage uses a unique dual-level design to further minimize space requirements
User-Friendly Programming Options
- Compatible with an onboard LCD interface or PC-based ControlMate* software
- Options available for creating and editing simple or complex pipetting procedures
- Ideal for procedures as diverse as automated serial dilution and cherry picking to 96/384 plate replications
�
�
Includes: Base Unit
Compatible with: Versette Accessories
Cat. No. Description
- 650-05-96TW 96 Channel Tip Wash Station, Standard Height
- 650-05-96TTW 96 Channel Tip Wash Station, Tall Height
- 650-05-384STW 384 Channel Tip Wash Station, Standard Height
- 650-05-384TTW 384 Channel Tip Wash Station, Tall Height
- 650-08-VMNA Vacuum Manifold Kit, 100V, Includes plate risers, also compatible with Thermo Scientific PlateMate* 2x3
- 650-08-VMEU Vacuum Manifold Kit, 220V, Includes plate risers, also compatible with Thermo Scientific PlateMate 2x3
- 650-08-PRC Piercing Manifold Kit, for use with 96 format sample storage tubes,also compatible with PlateMate 2x3
- 650-08-1.5ML-L 1.5ml Tube and Vial Adapter, accommodates lidded tubes and vials
- 650-08-2ML 2ml Tube and Vial Adapter
- 650-08-8ML 8ml Tube and Vial Adapter
- 650-08-BCR Linear barcode reader
- Thermo Scientific KingFisher*
- Thermo Scientific Multidrop* Dispenser
- Thermo Scientific Multiskan* FC and Multiskan GO Microplate Reader
- Thermo Scientific Varioska*n microplate reader
- Thermo Scientific RapidStak*, Orbitor, CataLyst Express
Warranty and Service Offering: One Year Warranty
Recommended for: Can be used in a number of applications in academia, pharma and biotech including drug discovery (including CROs), cell-based, genomics and proteomics.Ideal for life science researchers in low- to high-throughput laboratories currently performing hand-held pipetting tasks who want to move to automation or customers putting together integrated systems that require liquid handling.
